OBLO

The Oblo lamp pole is the result of simplicity and formal aesthetics with an elegant, synthetic, and rational approach.

Anti-glare recessed petal for the application of one or two lamps at 180º on posts of 3m or 6m.

Its thermal management is made through an aluminum dissipator integrated into the body of the luminaire.

Standard electrolytic zinc-coated post with coal-black finish, or fire-galvanized option.


Technical specifications

Type of use / Externo

Composition / petal made of treated and painted die-cast aluminum. Post in galvanized steel tube with steel base, treated and painted.

Finishing / microtextured polyester powder coating, UV resistant, Rohs standardized.

Observation / product selected in the Museu da Casa Brasileira award (Finalist in the lighting category) - 2016 / Abilux Design de Luminárias (2nd place in the sports and ornamental category) - 2017.

  Code Light source Power Beam angle Luminous flux Luminoues intendity CCT IRC Socket Service life Auxiliar equipament
PT.0989.1.LED Módulo LED 31W N/A 3000lm N/A 3000K >70 N/A 50.000h ( 25ºC ) DRIVER 220VDC
PT.0989.2.LED Módulo LED 31W N/A 3000lm N/A 3000K >70 N/A 50.000h ( 25ºC ) DRIVER 220VDC

Arraste para ver mais

Related issues

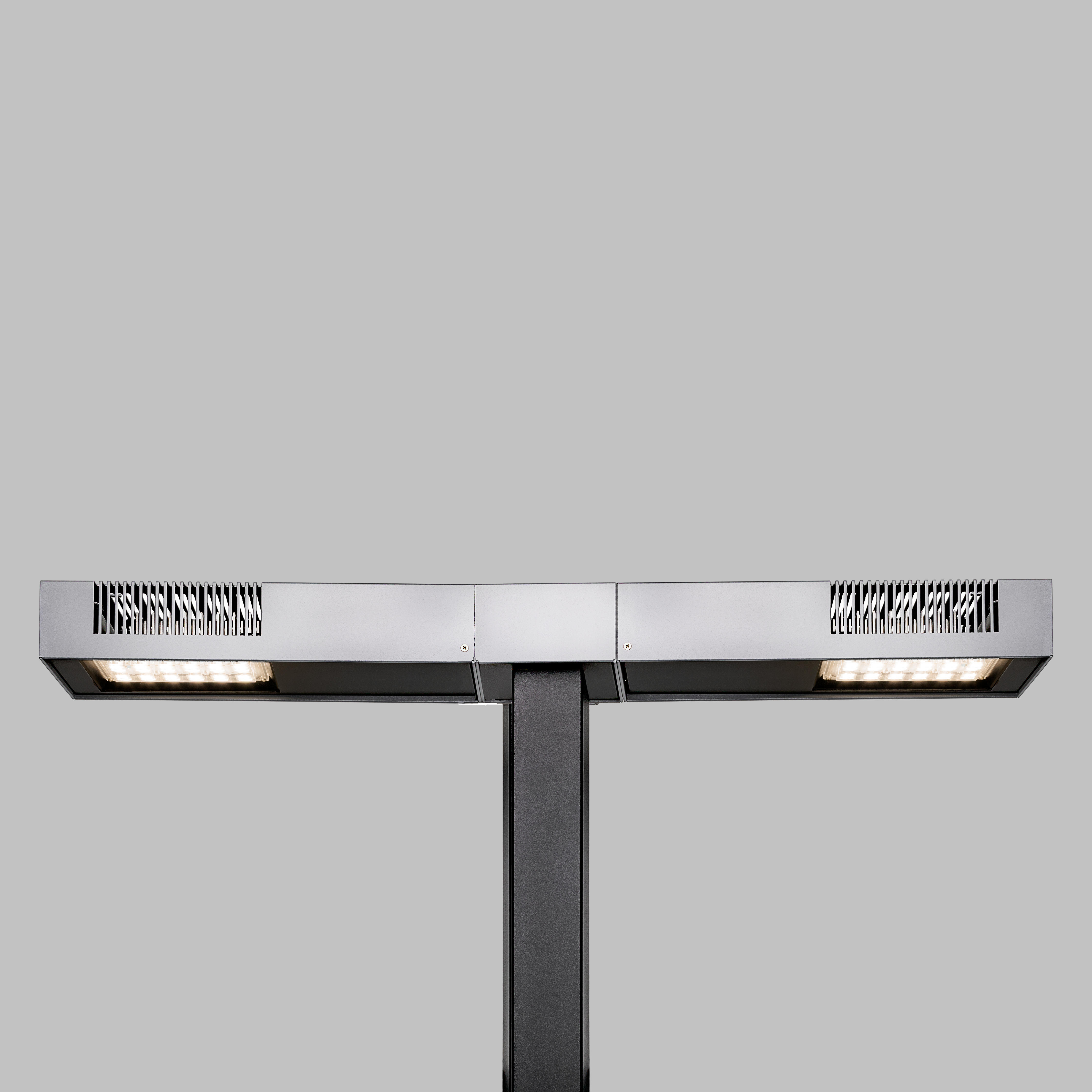

urb
