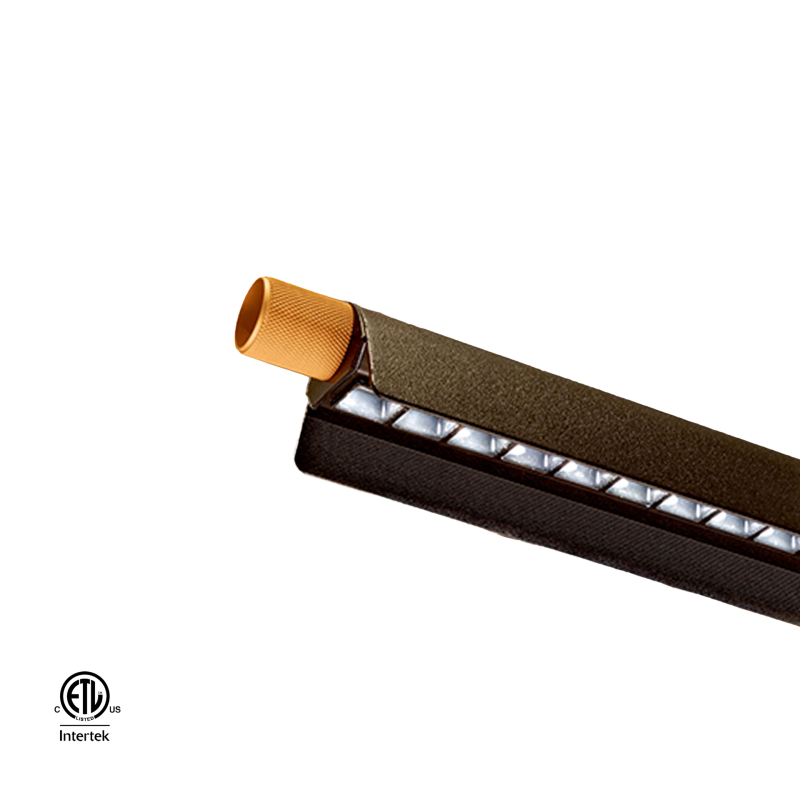

ubá darklight
Inspired by canoes carved out of tree trunks, its profile provides continuous lines of light, smooth and delicate. Executed in extruded aluminum profile in many sizes, with microtextured painting and aluminum components. Ideal for work areas in corporate environments, with light source retreat, bringing glare control and visual comfort. Ubá brings comfortable and controlled lighting, in a light and elegant way, to the most diverse environments.
Technical specifications
Type of use / Indoor
Composition / Extruded aluminum, trated and painted.
Finishing / Microtextured powder paint
Observation / -
| Code | Light source | Power | Beam angle | Luminous flux | Luminoues intendity | CCT | IRC | Socket | Service life | Auxiliar equipament | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UA.0017.1.30.LED | Módulo LED | 31,53W | 30° | 3235,8lm | 5896 cd | 3000K | >90 | N/A | 50 000h (25°C) | Driver 220V / 120V (only USA) | ||
| UA.0017.1.65.LED | Módulo LED | 31,53W | 65° | 3568lm | 2781 cd | 3000K | >90 | N/A | 50 000h (25°C) | Driver 220V / 120V (only USA) | ||
| UA.0018.1.30.LED | Módulo LED | 39,41W | 30° | 4044,8lm | 7370 cd | 3000K | >90 | N/A | 50 000h (25°C) | Driver 220V / 120V (only USA) | ||
| UA.0018.1.65.LED | Módulo LED | 39,41W | 65° | 4460lm | 3476 cd | 3000K | >90 | N/A | 50 000h (25°C) | Driver 220V / 120V (only USA) | ||
| UA.0019.1.30.LED | Módulo LED | 46,77W | 30° | 4853,7lm | 8844 cd | 3000K | >90 | N/A | 50 000h (25°C) | Driver 220V / 120V (only USA) | ||
| UA.0019.1.65.LED | Módulo LED | 46,77W | 65° | 5352lm | 4171 cd | 3000K | >90 | N/A | 50 000h (25°C) | Driver 220V / 120V (only USA) |
